MCS158-wxyz
2 way motorized coaxial switch
PRODUCT FEATURES
2 way motorized coaxial switch
- Motor drive
- Position indicator
- End position indicator
- End position signal contacts
- Advanced signal contacts
OPTIONS
- 19’’ rack frame supports
- Extra-Safety configuration
- Custom Pin-Out
| SPECIFICATION | |
|---|---|
| PRODUCT CODE | MCS78 |
| TYPE | Motorized switch |
| No. of PORTS | 4 |
| SWITCHING TIME | <1 sec. |
| TEMPERATURE OPERATING ENVIRONMENT | -10 ÷ 50 °C 14 ÷ 122 °F |
| CONNECTIONS (1) & CODES MCS78-wxyz where: w(1) – connections x – operating voltage y – control voltage z – pin-out | w=0: N female w=2: DIN 7/16"female w=4: EIA 7/8" flange x=1: 110 ÷ 120 Vac 50÷60Hz y=1: 5Vdc y=2: 12Vdc y=3: 24Vdc z=1: Default z=2: Custom (2) |
| ELECTRICAL DATA | |
|---|---|
| FREQUENCY RANGE | DC ÷ 1 GHz |
| MAXIMUM INPUT POWER (3, 4) | 108MHz: 500W (N) 108MHz: 2000W (7/16) 108MHz: 5000W (7/8") 230MHz: 400W (N) 230MHz: 1200W (7/16) 230MHz: 3500W (7/8") 860MHz: 200W (N) 860MHz: 1000W (7/16) 860MHz: 2000W (7/8") |
| INSERTION LOSS | < 0.05 dB |
| ISOLATION | 108MHz: >80dB 230MHz: >75dB 860MHz: >65dB |
| RETURN LOSS (VSWR) | 108MHz: >40 (<1:1.02) 230MHz: >30 (<1:1.03) 860MHz: >26 (<1:1.06) |
| IMPEDANCE | 50 Ω |

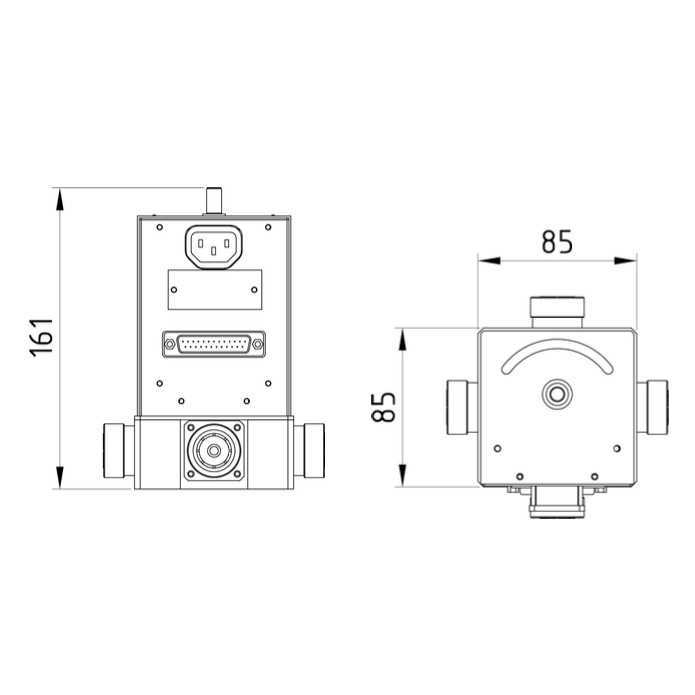

DIMENSIONAL DETAIL
| DIMENSIONS | 85x85x160 mm 10.94x10.94x13.78" |
| WEIGHT | 1,7 Kg (3.75 lbs) |
(1) Other connections available(2) Custom pinout available(3) Altitude < 1525 mt (5000 ft)(4) According to the connector’s type(5) Default
