Manual Antenna Split panel
PRODUCT FEATURES
Manual Antenna Split Panel
- 6 or 7 or 8 port (1) with upward connections (2)
- 3 U-link (1)
- Floating Interlock Contacts (3)
- 1:1 (-3.01 / -3.01dB) splitting ratio(4)
Options
- Digital or Analogue power meter
- Directional couplers for FWD/REV monitoring
- Mesurement adapter
- Directional couplers’ signals on the front panel
- Impedance trimming on the output lines
| SPECIFICATION | |
|---|---|
| PRODUCT CODE | MAP412 |
| TYPE | Manual Panel |
| TEMPERATURE OPERATING ENVIRONMENT | -10 ÷ 50 °C 14 ÷ 122 °F |
| CODES MAP318-tuwxy-zz where: t – frequency range (1÷n)(4) u – number of probes (6÷2)(1) w – number of U-Link (3÷n)(1) x – connections y – number of Interlock contacts (1÷n) z - version (00÷n) | t=1: VHF B.I t=2: VHF B.II (FM) t=3: VHF B.III (DAB) t=4: UHF B.IV/V x=C: EIA 3 1/8’’ flange x=D: EIA 3 1/8’’ male x=E: 3 1/8" unflanged x=F: 3 1/8’ clamping |
| ELECTRICAL DATA | |
|---|---|
| MAXIMUM INPUT POWER (3) | 108MHz: 48500W 230MHz: 35000W 860MHz: 18000W |
| INSERTION LOSS | < 0.05 dB |
| SPLITTING RATIO (4) | 1:1 (-3.01dB / -3.01dB) |
| RETURN LOSS (VSWR) | 108MHz: >32 (<1:1.05) 230MHz: >28 (<1:1.08) 860MHz: >26 (<1:1.11) |
| IMPEDANCE | 50 Ω |

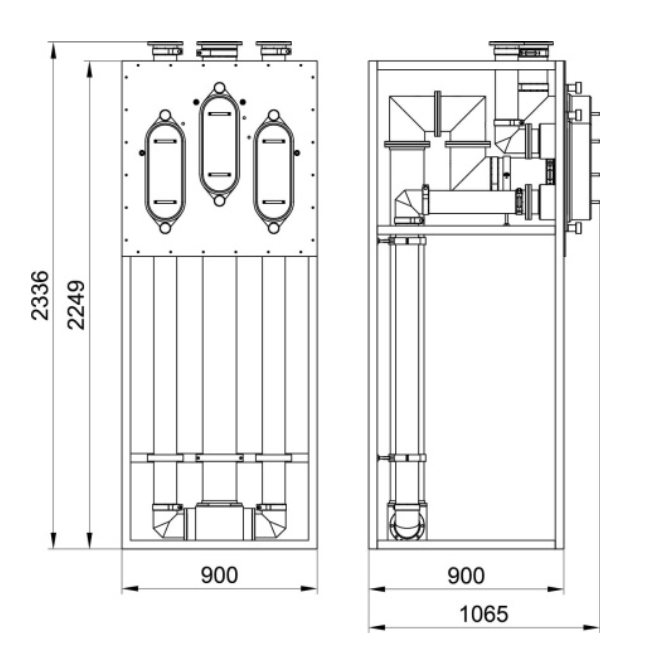

DIMENSIONAL DETAIL
| DIMENSIONS | 566x565x2129mm 21.89x22.24x83.82" |
| WEIGHT | 95 Kg (209.44 lbs) |
(1) Different number of ports and U-Link available
(2) down, rear, left, right, or mixed ward connections on reques
(3) Additional interlocks on request
(4) Different splitting ratios on request
(5) Altitude < 1525 m (5000 ft)
