LPF45080
PRODUCT FEATURES
VHF (DTV) Low pass Filter
- Full-band
- Modular connection system
OPTIONS
- Directional coupler
| SPECIFICATION | |
|---|---|
| PRODUCT CODE | LPF45080 |
| MAX OPERATING TEMPERATURE (body) | 80 °C (176 °F) |
| TEMPERATURE OPERATING ENVIRONMENT | -5 ÷ 65 °C 23 ÷ 149 °F |
| CONNECTIONS & PRODUCT CODES (1) | 3 1/8" unflanged m-f LPF45080-EF 3 1/8" flange LPF45080-CC |
| ELECTRICAL DATA | |
|---|---|
| FREQUENCY RANGE | DC ÷ 325 MHz |
| MAXIMUM RMS INPUT POWER | 15000 W |
| INSERTION LOSS @ F0 | < 0.03 dB |
| ATTENUATION 500 ÷ 650 MHz | > 45 dB |
| ATTENUATION 650 ÷ 1000 MHz | > 65 dB |
| RETURN LOSS (VSWR) | < -30 dB < 1.06 |
| INPUT/OUTPUTIMPEDANCE | 50 Ω |

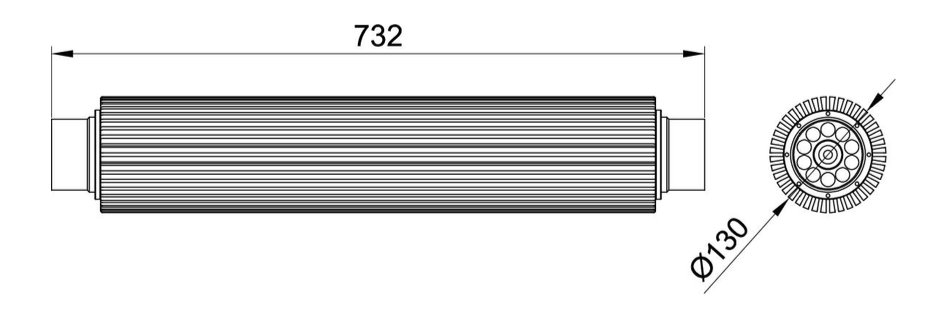

DIMENSIONAL DETAIL
| DIMENSIONS | 732x130x130 mm 28.8x5.2x5.2" |
| WEIGHT | 15 Kg (33 lbs) |
(1) Other connections available
(2) Altitude < 1525 mt (5000 ft)
