DLV152-X
1500W Dummy Load - DC÷1GHz
PRODUCT FEATURES
1500W Dummy Load – DC÷1GHz
- Low VSWR
- Oil and forced air cooling
- Indoor
- Optional over-temperature interlock switch
- Optional monitoring probe
| SPECIFICATION | |
|---|---|
| PRODUCT CODE | DLV152 |
| TEMPERATURE OPERATING ENVIRONMENT Cooling fins vertically | -35 ÷ 50 °C -31 ÷ 122 °F |
| CONNECTIONS & CODES DLV152-x where: x– connection | 2 → DIN 7/16 female 4 → EIA 7/8" flange 6 → 7/8" unflanged |
| ELECTRICAL DATA | |
|---|---|
| FREQUENCY RANGE | DC÷1GHz |
| MAXIMUM INPUT POWER (2) | 1500W |
| RETURN LOSS (4) (VSWR) | > -26.4 dB(@ 0÷1000MHz) < 1.10 dB(@ 0÷1000MHz) |
| IMPEDANCE | 50 Ω |
| BLOWER POWER | 230Vac or 110Vac |

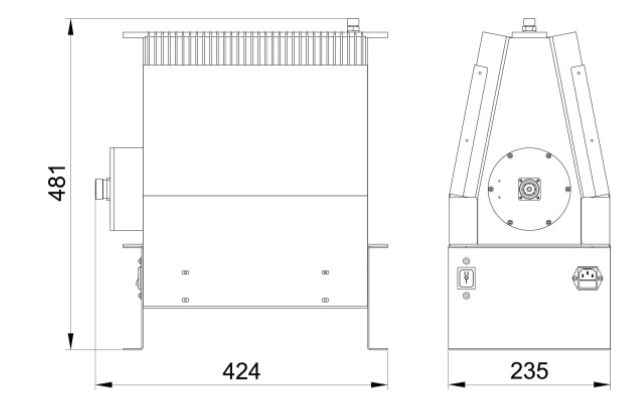

DIMENSIONAL DETAIL
| DIMENSIONS | 235x424x481 mm 9.25x16.69x18.94" |
| WEIGHT | 25,0 Kg (55.1 lbs) |
(1) Other connections available
(2) Altitude < 1525 mt (5000 ft)
