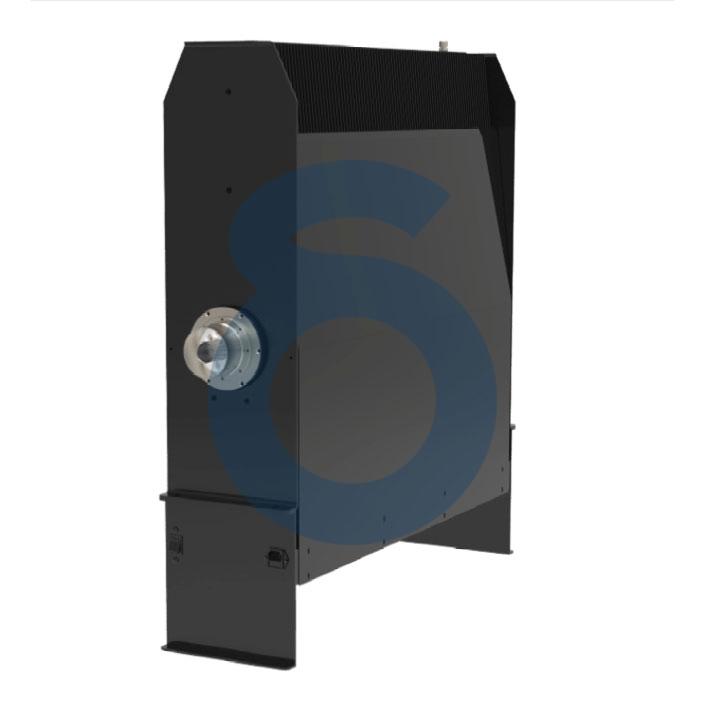

DLV103-X
10000W Dummy Load - DC÷1GHz
PRODUCT FEATURES
10000W Dummy Load – DC÷1GHz
- Low VSWR
- Oil and forced air cooling
- Indoor
- Over-temperature interlock switch
- Optional monitoring probe
| SPECIFICATION | |
|---|---|
| PRODUCT CODE | DLV103 |
| TEMPERATURE OPERATING ENVIRONMENT Cooling fins vertically | -35 ÷ 50 °C -31 ÷ 122 °F |
| CONNECTIONS & CODES DLV103-x where: x– connection | 8 → EIA 1 5/8" flange A → 1 5/8" unflanged C → EIA 3 1/8" flange E → 3 1/8" unflanged |
| ELECTRICAL DATA | |
|---|---|
| FREQUENCY RANGE | DC÷1GHz |
| MAXIMUM INPUT POWER (2) | 10000W |
| RETURN LOSS (4) (VSWR) | > -26.4 dB(@ 0÷300MHz) < 1.10 dB(@ 0÷300MHz) > -22.6 dB(@ 300MHz÷1GHz) < 1.16 dB(@ 300MHz÷1GHz) |
| IMPEDANCE | 50 Ω |
| BLOWER POWER | 230Vac or 110Vac |

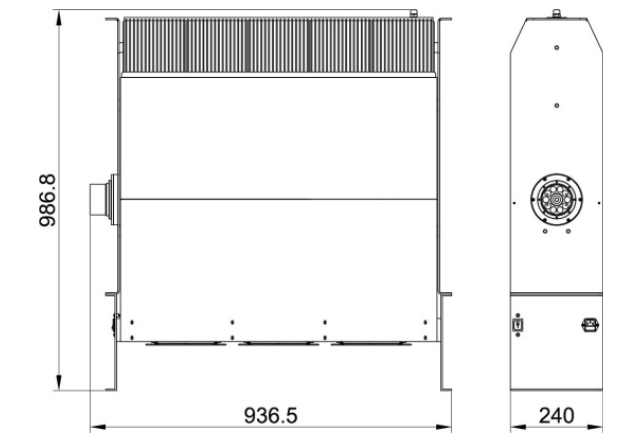

DIMENSIONAL DETAIL
| DIMENSIONS | 240x937x987 mm 9.45x36.89x38.86" |
| WEIGHT | 116,0 Kg (255.7 lbs) |
(1) Other connections available
(2) Altitude < 1525 mt (5000 ft)
