DCP784-uvwxy

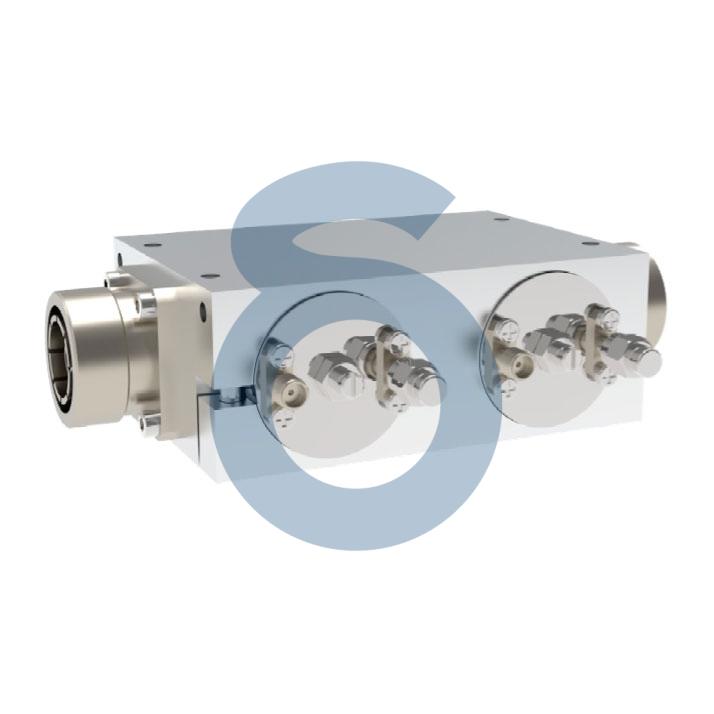

Directional Coupler 7/8" - DC÷3GHZ - 4 Slot
PRODUCT FEATURES
Directional Coupler 7/8″ – DC÷3GHZ – 4 Slot
- High directivity
- Low VSWR
- ISM & Broadcast application
- Modular connection system
- Equalized response probes
- Flat response
- Suitable for a wide frequency range
- Robust mechanical design
- Terminator load included
| SPECIFICATION | |
|---|---|
| PRODUCT CODE | DCP784 |
| No. OF SLOT | 4 |
| MAX OPERATING TEMPERATURE | 65 °C (149 °F) |
| TEMPERATURE OPERATING ENVIRONMENT | -5 ÷ 50 °C 23 ÷ 122 °F |
| CONNECTIONS & CODES DCP784--uvwxy where: u – frequency range (1÷n)(4) v – number of probes (0÷2) w – probe connection (0÷1) x – input y – output | u=1: VHF B.I u=2: VHF B.II (FM) u=3: VHF B.III (DAB) u=4: UHF B.IV/V w=0: SMA female w=1: N female x÷y=0: N female x÷y=1: N male x÷y=2: DIN 7/16 female (1) x÷y=3: DIN 7/16 male x÷y=4: EIA 7/8’’ flange x÷y=6: 7/8’’ unflanged x÷y=7: 7/8’’ clamping |
| ELECTRICAL DATA | |
|---|---|
| FREQUENCY RANGE (4) | VHF B.I: 47-88MHz VHF B.II: 87.5-108MHz VHF B.III: 174-240MHz UHF B.IV/V: 470-860MHz |
| MAXIMUM INPUT POWER (3) | VHF B.I: 7,5kW (6) VHF B.II: 6kW (6) VHF B.III: 3.5kW (6) UHF B.IV/V: 2.5kW (6) |
| INSERTION LOSS | ≤ 0.04 dB |
| RETURN LOSS (VSWR) | > -34 dB < 1.04 |
| IMPEDANCE | 50 Ω |
| COUPLING RANGE (5) | VHF B.I: -66 ÷ -84 dB VHF B.II: -50 ÷ -73 dB VHF B.III: -38 ÷ -62 dB UHF B.IV/V: -35 ÷ -60 dB |
| DIRECTIVELY | > 30 dB |
| COUPLING TOLERANCE | ≤ ± 0.15 dB |

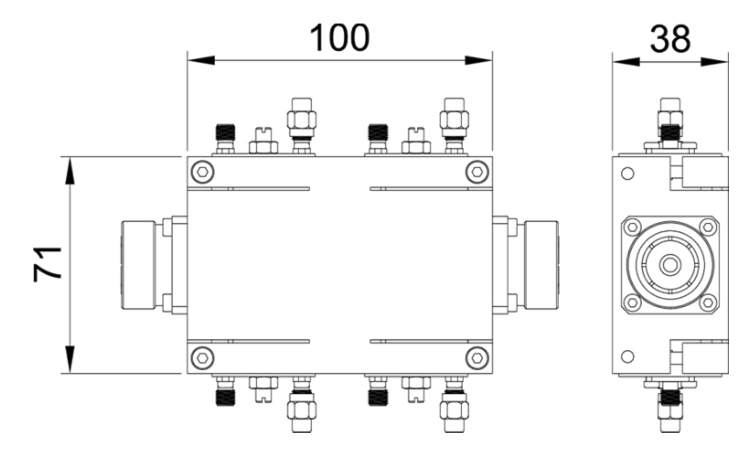

DIMENSIONAL DETAIL
| DIMENSIONS | 38X100X71 mm 1.50X3.94X2.80" |
| WEIGHT | 0,9 Kg (2.0 lbs) |
(1) Default configuration
(2) Other connections available
(2) Altitude < 1525 mt (5000 ft)
(4) Specific bands configuration available
(5) Different ranges available
(6) According to the connector’s type
