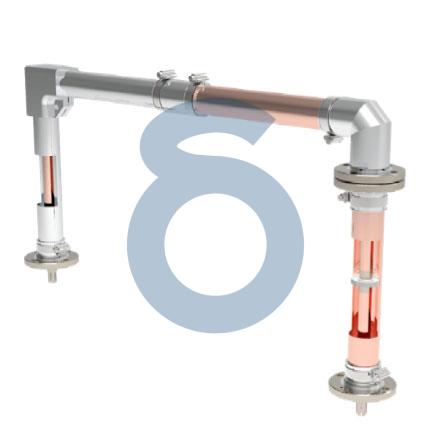

COAXIAL 158
PRODUCT FEATURES
Transmission Line 1 5/8’’ – DC÷2.5GHz
- High-performance rigid transmission copper-copper or aluminum-copper conductors
- Low VSWR
- Low Insertion Loss
- Clamp-type flange system
- Modular jointing components
- Dimension: standard EIA 1 5/8’’
- Impedance: 50Ω
- Insulator: PTFE
| GENERAL FEATURES | |
|---|---|
| MAXIMUM RMS INPUT POWER(1;2) | VHF B.I (88MHz): 17kW VHF B.II (108MHz): 15kW VHF B.III (230MHz): 10kW UHF (860MHz): 5.5kW |
Rigid Line
PRODUCT CODE:
RL158-IC
Copper inner conductor
RL158-OA
Aluminium outer conductor
RL158-OC
Copper outer conductor
| ELECTRICAL and MECHANICAL DATA | |
|---|---|
| ATTENUATION (1;3) | VHF B.I (88MHz): 0.61 dB/100mt VHF B.II (108MHz): 0.65 dB/100mt VHF B.III (230MHz): 0.95 dB/100mt UHF (860MHz): 1.85 dB/100mt |
| WEIGHT | 1,84 Kg/mt ( 1.24 lbs/ft) copper-copper 0,85 Kg/mt ( 0.57 lbs/ft) aluminum-copper |
Inner conductor support
PRODUCT CODE:
RL158S
Recommended for use on 1 5/8″ transmission line runs longer than 1.5m (5′)
| ELECTRICAL and MECHANICAL DATA | |
|---|---|
| WEIGHT | 0,1 Kg ( 0.22 lbs) |
Clamping Flange
PRODUCT CODE:
RL158F-8-A
Aluminium
RL158F-8-B
Brass
| ELECTRICAL and MECHANICAL DATA | |
|---|---|
| RETURN LOSS (4) (VSWR) | > -36.6 dB < 1.03 |
| WEIGHT | 0,25 Kg ( 0.55 lbs) – Aluminum 0,75 Kg ( 1.65 lbs) – Brass |
EIA Inner
PRODUCT CODE:
RL158I
| ELECTRICAL and MECHANICAL DATA | |
|---|---|
| WEIGHT | 0,1 Kg ( 0.22 lbs) |
Rigid Line Joint
PRODUCT CODE:
RL158J
| ELECTRICAL and MECHANICAL DATA | |
|---|---|
| RETURN LOSS (4) (VSWR) | > -36.6 dB < 1.03 |
| WEIGHT | 1,8 Kg ( 4.00 lbs) |
90° Elbow Clamping-Clamping
PRODUCT CODE:
RL158E-BB
| ELECTRICAL and MECHANICAL DATA | |
|---|---|
| RETURN LOSS (4) (VSWR) | > -36.6 dB < 1.03 |
| WEIGHT | 1,6 Kg ( 3.52 lbs) |
90° Elbow EIA Flange-Clamping
PRODUCT CODE:
RL158E-8B
| ELECTRICAL and MECHANICAL DATA | |
|---|---|
| RETURN LOSS (4) (VSWR) | > -36.6 dB < 1.03 |
| WEIGHT | 2,0 Kg ( 4.40 lbs) |
90° Elbow EIA Flange-EIA Flange
PRODUCT CODE:
RL158E-88
| ELECTRICAL and MECHANICAL DATA | |
|---|---|
| RETURN LOSS (4) (VSWR) | > -36.6 dB < 1.03 |
| WEIGHT | 2,4 Kg ( 5.30 lbs) |
(1) Default specific configuration available
(2) Altitude < 1525 mt (5000 ft) and +30°C (86° F) air dry temperature
(3) Sea level, and +20°C (68° F) air dry temperature, VSWR 1.0
(4) Return Loss (VSWR) value is referred 700MHz
