2SC35050-xy
PRODUCT FEATURES

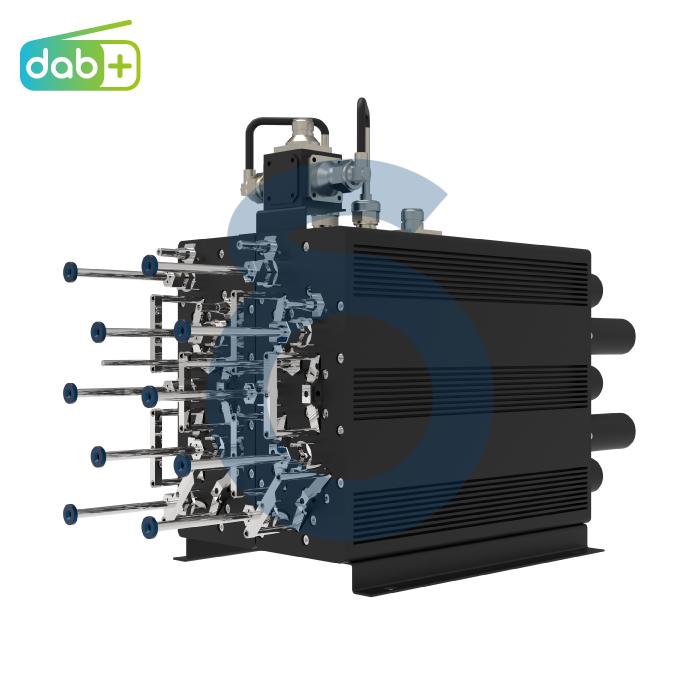

DAB 5-pole 50mm Strarpoint Combiner
- DC-Short
- Temperature compensated
- Stainless steel frame
OPTIONS
- 19’’ rack frame supports
- Customized Layout and Frame
- Multiple inputs configurations available
| SPECIFICATION | |
|---|---|
| PRODUCT CODE | 2SC35050 |
| TYPE | Starpoint |
| NUMBER OF POLES | 5-pole helliptical |
| CAVITY SIZE | 50 mm |
| DISTANCE BETWEEN CHANNELS | 1 Guard block |
| TEMPERATURE STABILITY | < 1 kHz/°K |
| MAX OPERATING TEMPERATURE (body) | 65 °C (149 °F) |
| TEMPERATURE OPERATING ENVIRONMENT | -5 ÷ 50 °C 23 ÷ 122 °F |
| CONNECTIONS & CODES | 2SC35050-xyz where: x– inputs y – output 0 → N female 2 → 7/16 female |
| ELECTRICAL DATA | |
|---|---|
| FREQUENCY RANGE | 174 ÷ 240 MHz |
| MAXIMUM RMS INPUT POWER | 100 W (4)(6) |
| MAXIMUM RMS OUTPUT POWER | 200 W (6) |
| INSERTION LOSS @ F0 | < 1.5 dB (5) |
| INSERTION LOSS @ F0 ± 0.77MHz | < 2.9 dB (5) |
| ATTENUATION @ F0 ± 0.97 MHz | > 10 dB (5) |
| ATTENUATION @ F0 ± 1.77 MHz | > 24 dB (5) |
| ATTENUATION @ F0 ± 2.20 MHz | > 29 dB (5) |
| ATTENUATION @ F0 ± 3.00 MHz | > 36 dB (5) |
| BANDWIDTH | 1.54 MHz |
| RETURN LOSS (VSWR) | < -26 dB (< 1:1.10) |
| ISOLATION BETWEEN CHANNELS | > 30 dB |
| GROUP DELAY VARIATION | < 550 ns |

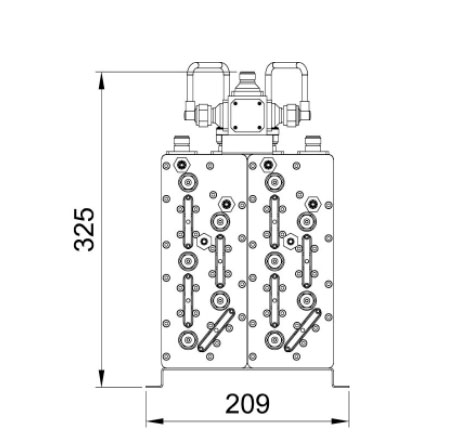

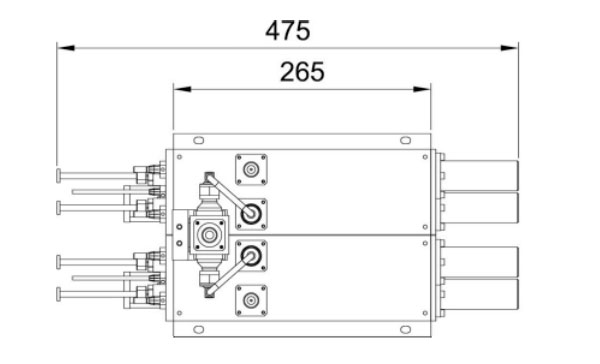

DIMENSIONAL DETAIL
| DIMENSIONS | 209x475x325 mm 8.2x18.7x12.8" |
| WEIGHT | 21 Kg (46 lbs) |
(1) Default configuration
(2) Other connections available
(3) Altitude < 1525 mt (5000 ft)
(4) Higher power rate with Heat Sinks or Forced Air Cooling options
(5) Other tuning configuration available
(6) According to the connector’s type
