Switching Control Unit

The 1676 is a manual control panel designed for the local operation of Delta motorized coaxial switches.

The unit provides simple and reliable manual switching through a front-panel push button while continuously
indicating the current switch position by means of LED indicators.

Compatible with MCS78, MCS158, MCS318, MCS412 and other DELTA motorized coaxial switches.

PRODUCT FEATURES

Manual Control Panel for Motorized Coaxial Switches

  • Local manual operation of motorized coaxial switches
  • Single push-button with control
  • Internal universal AC power supply
  • High reliability and maintenance-free operation

OPTIONS

  • Customer specific cable assemblies
  • Custom Pin-Out
DOWNLOAD
BACK TO CATEGORY
BACK TO ALL PRODUCTS
SPECIFICATION
PRODUCT CODE1976
TYPEManual switch controller
MOUNTING19" Rack
HEIGHT1 RU
TEMPERATURE OPERATING ENVIRONMENT-10 ÷ 50 °C
14 ÷ 122 °F
CONTROL INTERFACED-Sub 25
ELECTRICAL DATA
POWER SUPPLY110-240Vac, 50/60Hz
CONTROL VOLTAGE5 / 12 / 24 Vdc selectable
SWITCHING COMMANDFront-panel push button
POSITION FEEDBACKLED indicators
INTERLOCK CONTACTSNC-C-NO

APPLICATION

  • Radio (FM/DAB) broadcast transmitters
  • TV (Analogue/Digital) broadcast transmitters
  • RF redundancy systems
  • Manual emergency switching
  • Maintenance operation
  • RF laboratory installation

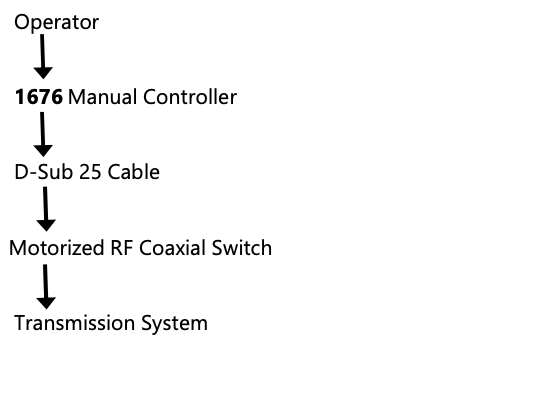

APPLICATION DIAGRAM
